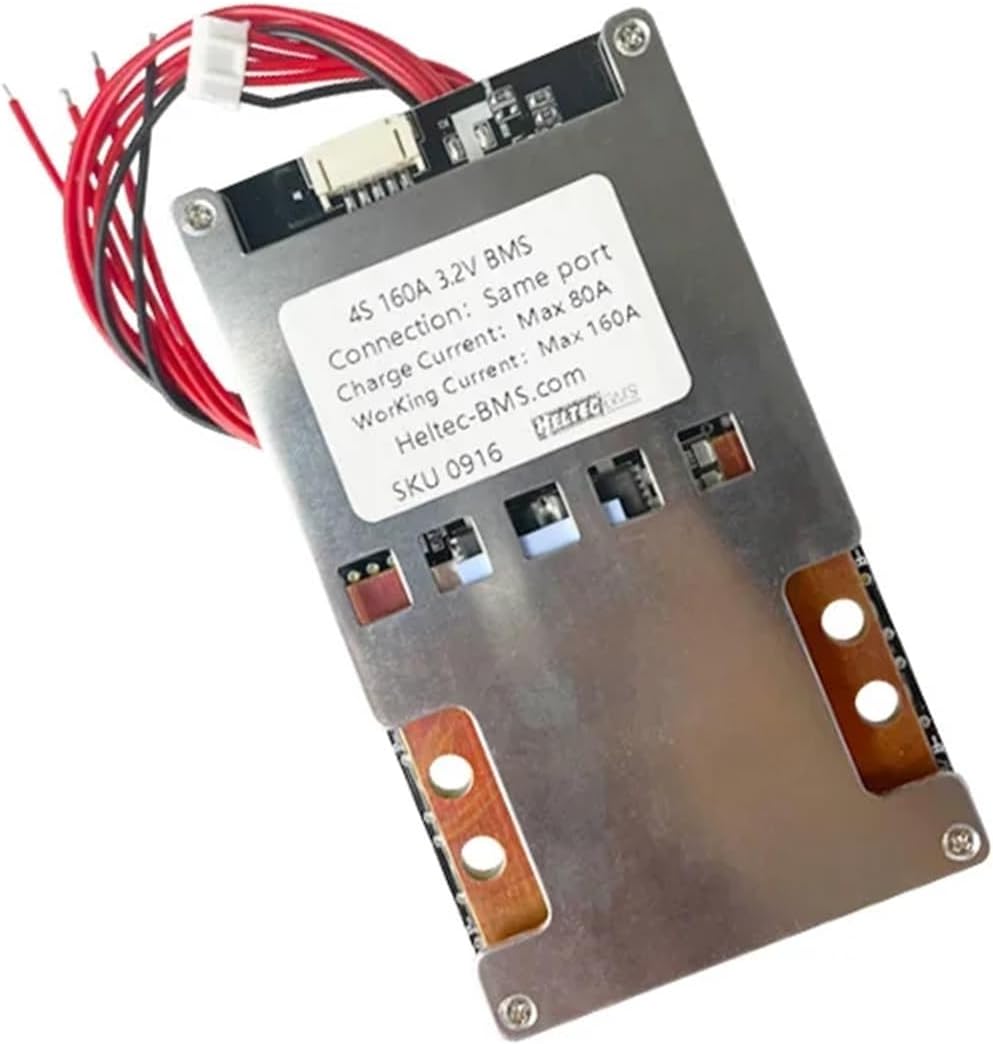

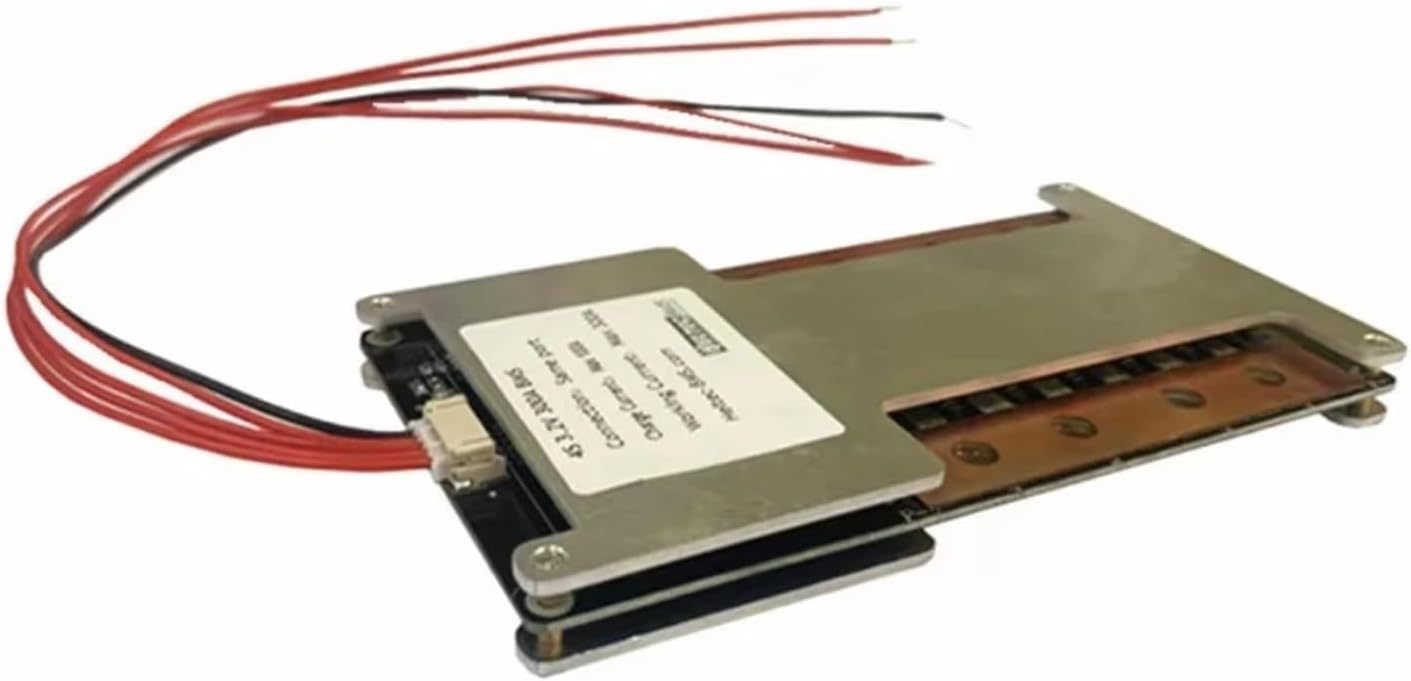

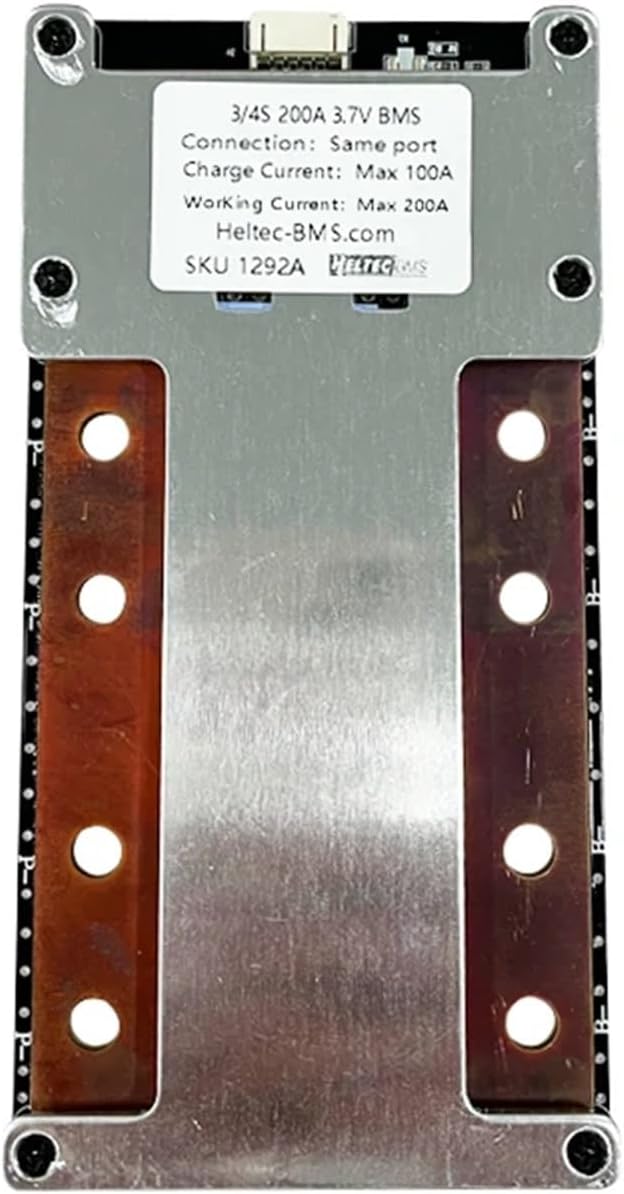

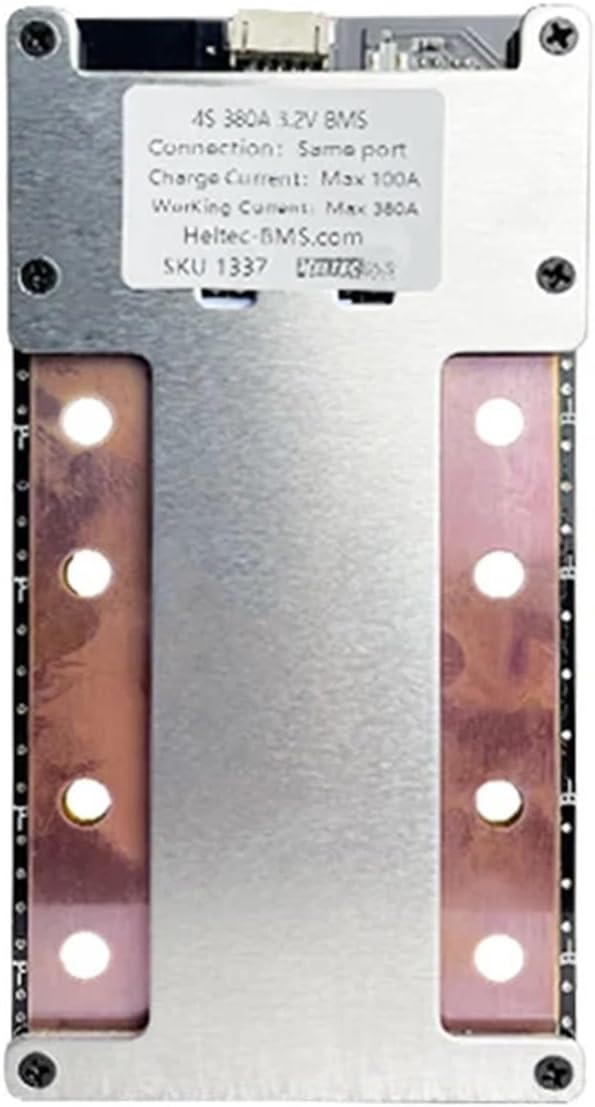

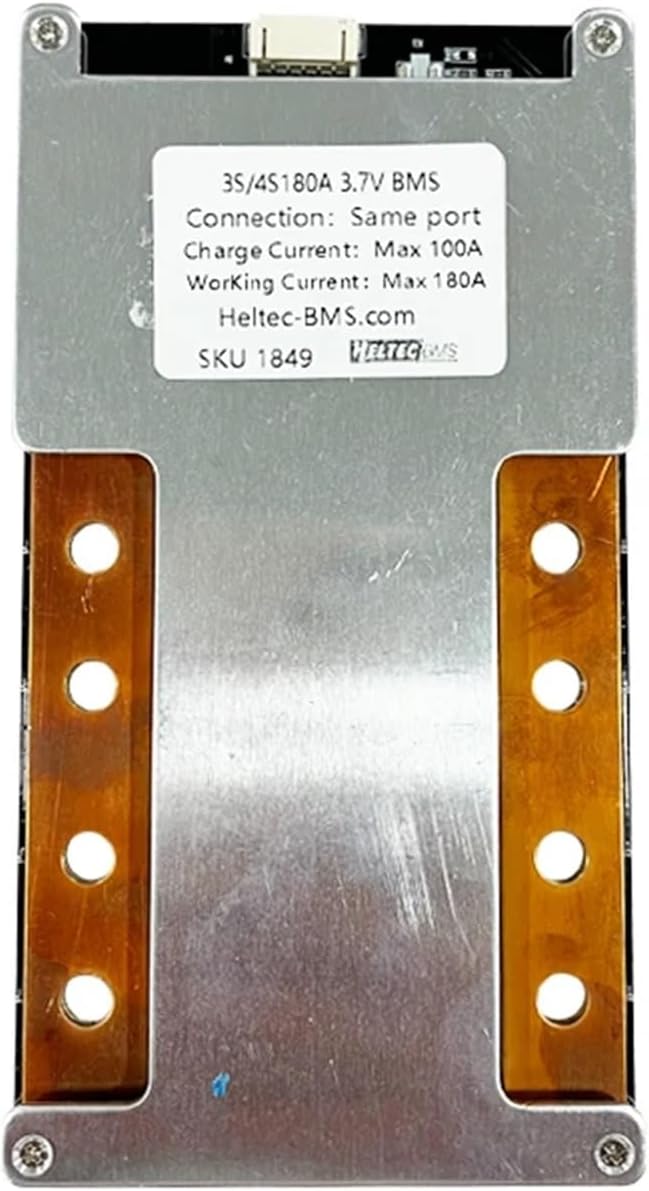

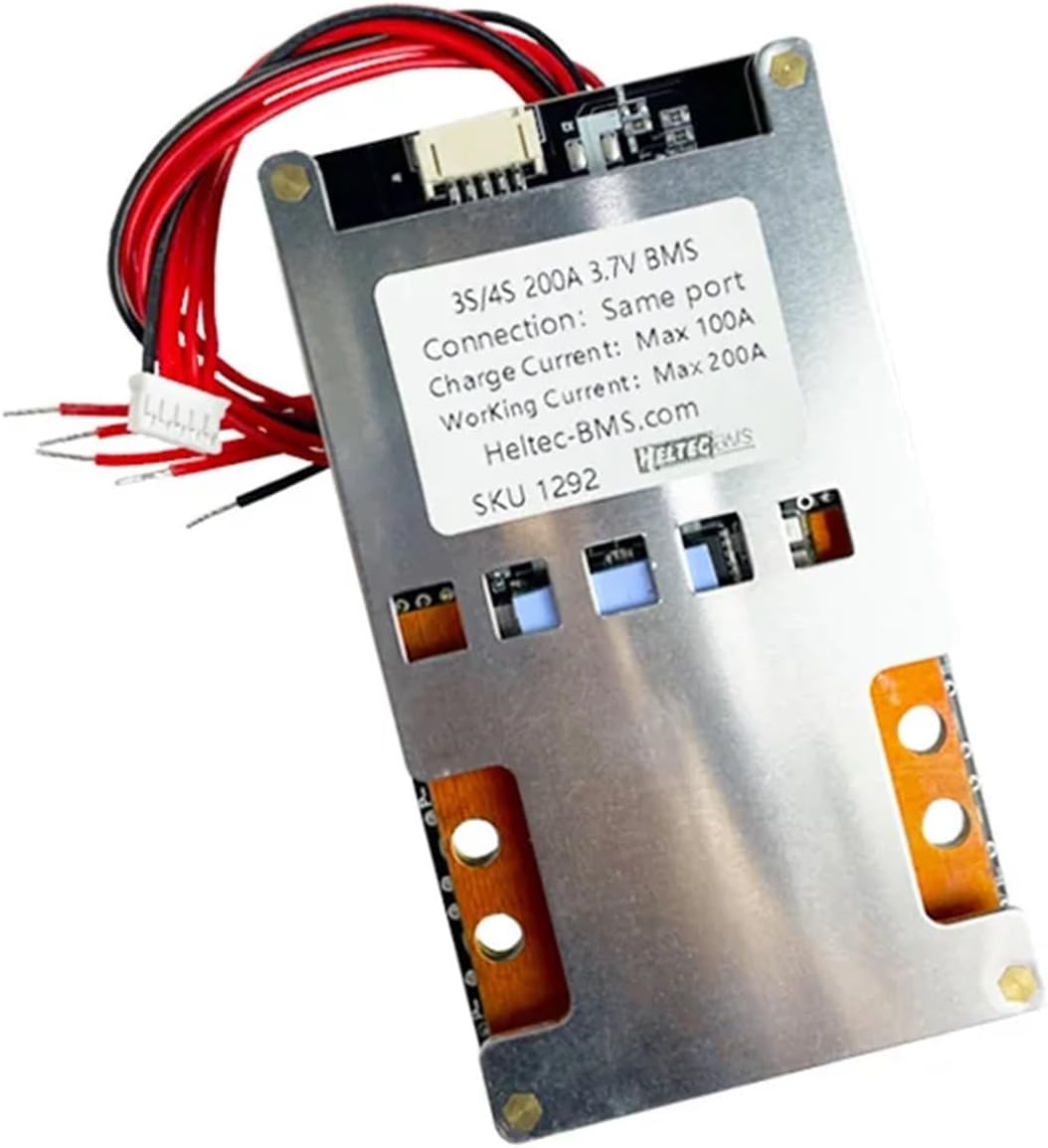

BMS 3S4S Balance 100A 120A 160A 200A 300A 380 12.6V/16.8V 18650 Battery Protection Board Lipo/LiFePo4 TFT Volt collection Dispay(3S 160A 3.7V Same)

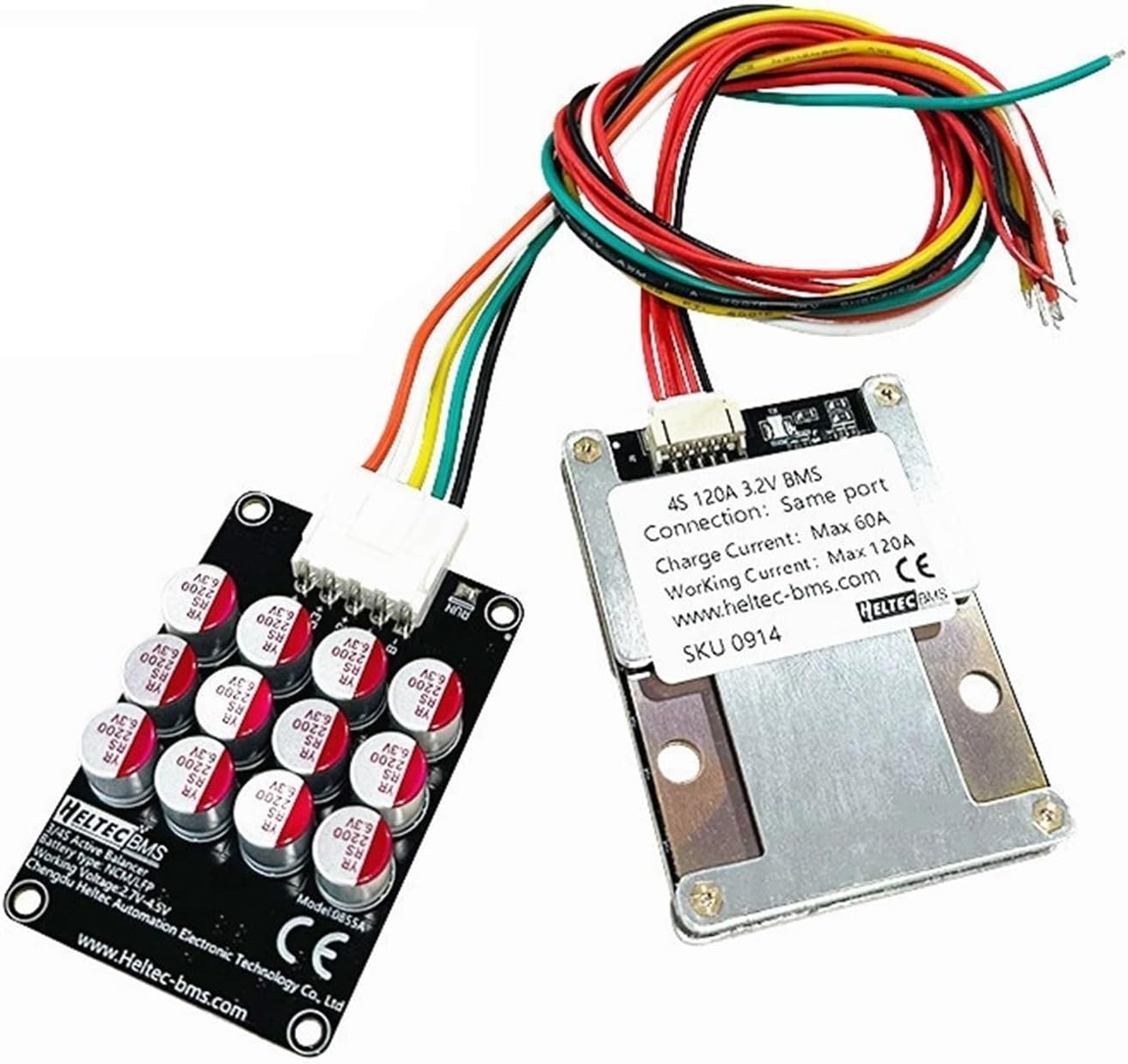

Circuit Boards3-4S 5A Active balancer Group BalanceWorking voltage: 1.8V-4.5VSuitable for ternary lithium, lithium iron phosphate,Working principle, the capacitor fit transfers the charge mover, the equalization board is connected to the battery, and the equalization is started. The ultra-low internal resistance MOS, 2OZ copper thickness PCBEquilibrium current 0-5.5A, the more balanced the battery, the smaller the current, with manual sleep switch, sleep current mode is less than 0.1mA, the balance voltage accuracy is within 5mv!The quiescent current is about 12 mA. It is recommended that the battery capacity is 60-300AH.With under-voltage sleep protection, the voltage will stop automatically when the voltage is lower than 3.0V, and the standby power consumption is less than 0.1mA.TFT Voltage collection DisplayTFT Voltage collection DisplayThis display is used to collect battery volatage 1-4SThe accuracy of a single string is 0.001V, and the total voltage is 0.01VDisplay can be flipped up and down through switches3S 4S 100A 3.7V Split PortApplicable assembly:3.7V Ternary lithium battery, 18650 battery, etcSerial port: 3s 4s/ split portSize: 83×55×8Overcharge protection voltage: 4.28VOver-discharge protection voltage: 2.5VAbnormal high voltage protection: yesTemperature protection: yes(if you need twmperature control swith need to contatc us to add)Maximal continuous current: 100ADischarge over-current protection: 550ABalanced current:100mALoad short circuit protection: protection, disconnect the load and self-recovery.Applicable scope: Suitable for load battery less than 1000W.3S 4S 120A 3.7V Same PortApplicable assembly:3.7V Ternary lithium battery, 18650 battery, etcSerial port: 3s 4s/ Same portSize: 72×55×14Overcharge protection voltage: 4.28VOver-discharge protection voltage: 2.9VAbnormal high voltage pro

• Circuit Boards
• BMS 3S4S Balance 100A 120A 160A 200A 300A 380 12.6V/16.8V 18650 Battery Protection Board Lipo/LiFePo4 TFT Volt collection Dispay
• Item weight: 0.11 pounds
